Choosing Your Motion Capture Suit and Markers

When setting up your motion capture system, selecting the right equipment that fits your requirements is essential. This page provides guidance on choosing appropriate motion capture suits and the recommended markers.

​
Motion Capture Suits

  • Suit Flexibility: You can use any motion capture suit that conforms well to the actor’s body shape, regardless of the brand. The fit of the suit is crucial for accurate motion data capture, ensuring it is snug yet allows unrestricted movement.

​
Markers

  • Marker Specifications: Use 53 markers with a diameter of 14mm for optimal compatibility and performance in motion tracking.
  • Manufacturer Flexibility: You are free to choose markers from any manufacturer, as long as they conform to the specified diameter. This allows you to select products based on your specific needs, preferences, and budget.

​
Marker Placement and Configuration

Proper marker placement is critical for accurate motion capture. This section explains the recommended configuration for marker placement on the motion capture suit and includes visuals to guide you through the process.

​
Overview of Marker Placement

  • Key Points of Placement: Markers should be strategically placed at specific anatomical landmarks on the actor’s body to capture a wide range of movements accurately.

​
Visual Guide to Marker Placement

  • Visual Diagrams: Below are diagrams that illustrate optimal marker placement on the motion capture suit. These visuals help ensure that each marker is correctly positioned for the best results.

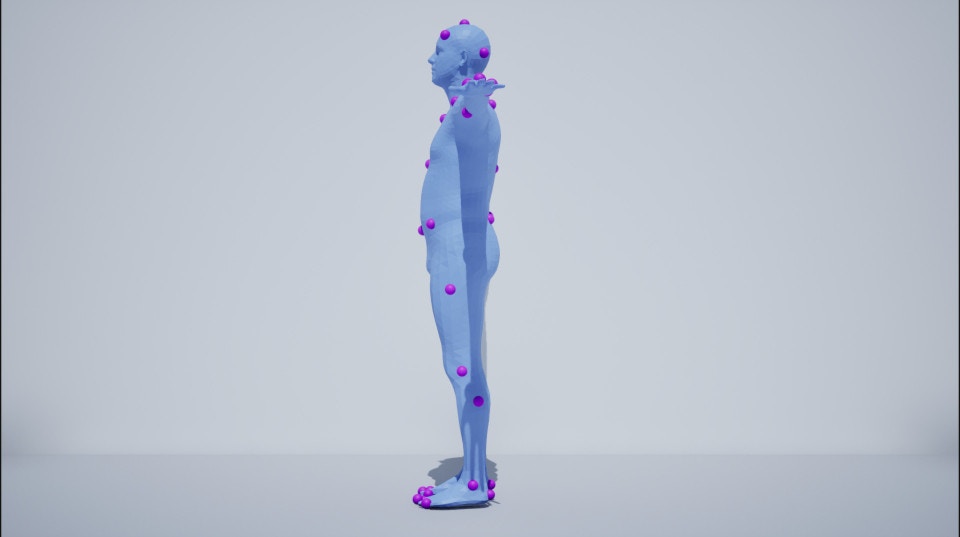

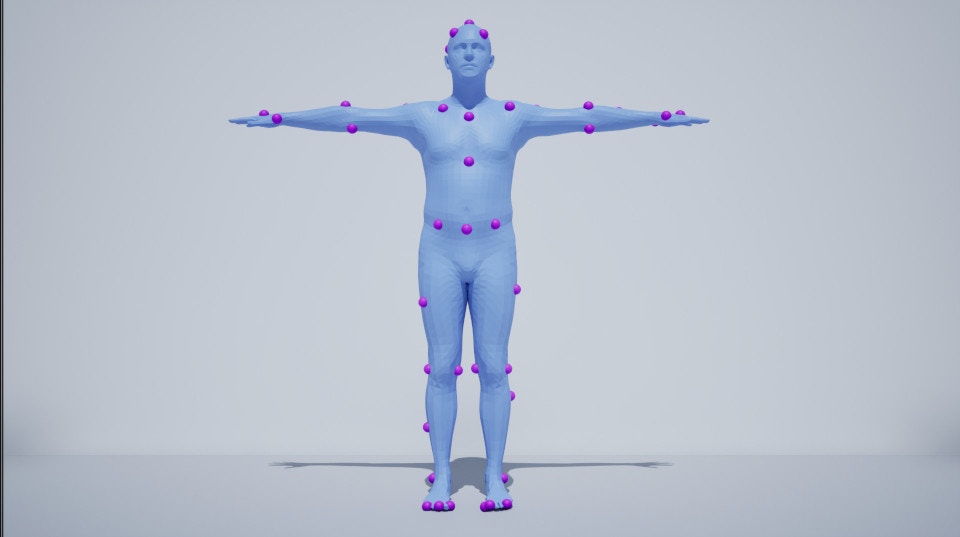

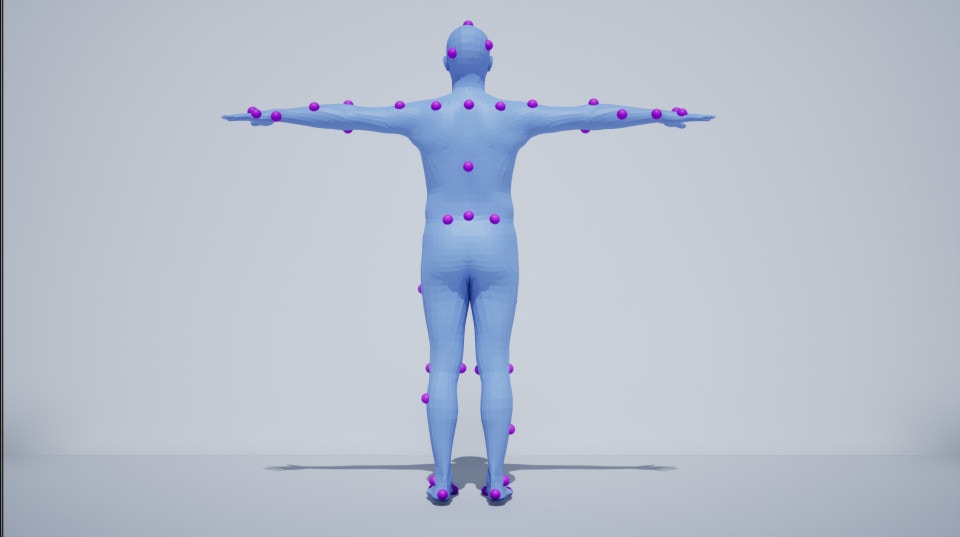

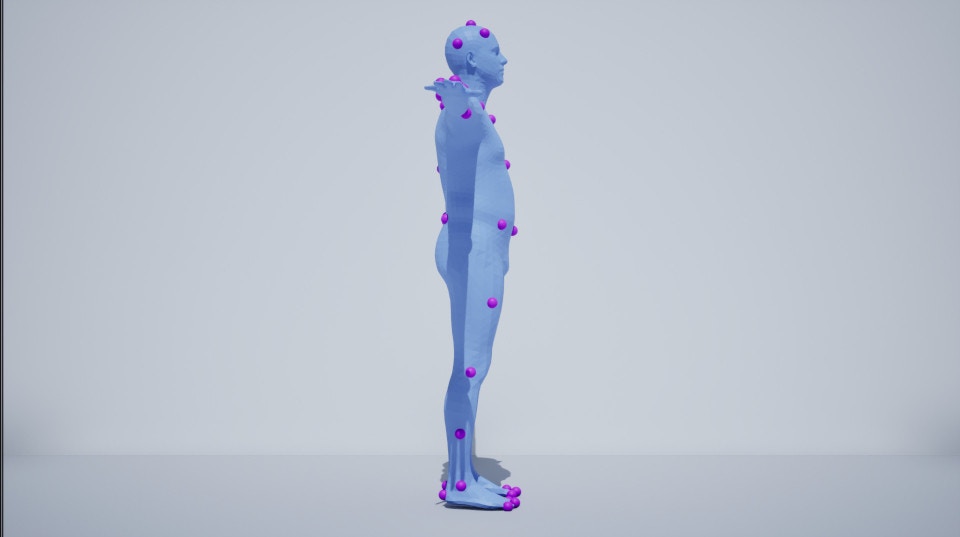

Visual guide for proper marker placement (zoom in by clicking)

​
Additional Tips

  • Consistency is Key: Ensure that markers are consistently placed in the same locations on the suit for every session to maintain data consistency.
  • Check for Visibility: Regularly verify that all markers are visible to the cameras during the setup phase and make adjustments as needed.

​
Conclusion

Proper marker placement is vital for achieving accurate and reliable motion capture data. Utilize the provided diagrams and follow the detailed instructions to optimize your setup. For further assistance, refer to the user manual or contact our support team.
